Normal salivary gland ultrasonography could rule out the diagnosis of Sjögren’s syndrome in anti-SSA-negative patients with sicca syndrome

Introduction

Sjögren’s syndrome (SS) is a heterogeneous systemic disorder potentially involving any organ.1 2 The cornerstone of the disease remains an autoimmune exocrinopathy.3 Chronic inflammation and progressive dysfunction of salivary (SG) and lachrymal glands are among the most distinctive lesions of SS.

However, some patients complain about dryness (with or without abnormalities on functional tests) without having SS according to the American College of Rheumatology (ACR)/EULAR criteria. For example, many patients with fibromyalgia may suffer from limb pain, fatigue and dryness, the characteristic triad of SS. We have proposed to name this form of fibromyalgia ‘sicca, asthenia, polyalgia syndrome’ (SAPS).4

In clinical practice, it is crucial to be able to distinguish easily both entities since new immunological treatments in development in SS are not adapted to patients with SAPS. This distinction is easy in patients with anti-SSA (Ro), but this antibody is present in only two-thirds of patients with SS. In absence of anti-SSA, the diagnosis of SS requires labial salivary gland biopsy (LSGB) that is considered aggressive by some clinicians. Moreover, LSGB interpretation may be not so easy for non-experienced pathologists and also because there is no international consensus of reading.

In the last decade, ultrasonography (US) has been increasingly used in the field of rheumatology. Many researchers and clinicians have identified SG ultrasonography (SGUS) as a valuable diagnostic tool for SS diagnosis.5–10 However, probably because it was not evaluated in populations with dryness of different origins, it was not included in the 2016 ACR/EULAR classification criteria.

In 2019, thanks to the OMERACT ultrasound working group, a consensual SGUS score was made11: a novel four-grade semi-quantitative scoring system for the parotid glands and submandibular glands in patients with SS was defined grade 0, normal parenchyma; grade 1, minimal change: mild inhomogeneity without anechoic/hypoechoic areas; grade 2, moderate change: moderate inhomogeneity with focal anechoic/hypoechoic areas; and grade 3, severe change: diffuse inhomogeneity with anechoic/hypoechoic areas occupying the entire gland surface. Of note, SG fibrotic lesions were not differentiated in the US scoring used in these studies.

In 2020, Jousse-Joulin et al12 have shown that adding SGUS to the other 2016 ACR/EULAR SS criteria improved the sensitivity from 90.2% to 95.6% with a quite similar specificity (84.1% vs 82.6%).

Thus, the aims of this study were to evaluate the relevance of SGUS in a large series of consecutive patients addressed to a tertiary reference centre for suspicion of SS in real-life situation in order to determine its place in the diagnosis algorithm of SS.

Materials and methods

Ultrasonography

All ultrasound examinations were performed by the same sonographer (Dr Gilles Gailly, in memoriam) in a standardised manner. The ultrasound scanner used was the Arietta V60, Hitachi, with an L64 (18-5 MHz) probe. Two sonographers (OAT and HG) were trained, during a session in December 2019, to read all ultrasound images of the SGs according to the OMERACT classification and the ultrasound images were read blindly by each sonographer. The images were scored according to the OMERACT score. However, in order to differentiate the stage of fibrosis, a fifth grade was added: gland which presents hyperechoic bands that develop into fibrotic tissue indistinguishable from the adjacent soft tissues, we scored it 3F.

Thus, ultrasound images were scored from 0 to 3 (and 3F) by each sonographer (figure 1). If they disagreed (with the exception of grade 0–1), the images were discussed and a consensus was found. Abnormal SGUS was defined as grade 2, 3 or 3F. In the primary analysis, the SGUS score was the worst grade in one among the four major salivary glands. We also realised a sensitivity analysis with the study of the two worst glands, as suggested by OMERACT.11

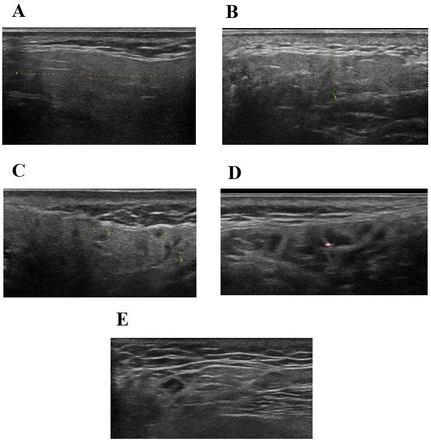

Figure 1

Request permission

SGUS scoring, according to the OMERACT score. (A) Grade 0, normal parenchyma. (B) Grade 1, minimal change: mild inhomogeneity without anechoic/hypoechoic areas. (C) Grade 2, moderate change: moderate inhomogeneity with focal anechoic/hypoechoic areas but surrounded with normal tissue. (D) Grade 3, severe change: diffuse inhomogeneity with anechoic/hypoechoic areas occupying the entire gland surface but surrounded with no normal tissue. (E) Grade 3F, parotid gland presents hyperechoic bands that develop into fibrotic tissue indistinguishable from the adjacent soft tissues.

Results

In total, 269/337 patients seen at our day hospital from June 2015 to September 2019 underwent a SGUS. Seventy-seven patients had a diagnosis of SS (75 primary and 2 secondary) and 192 did not meet the ACR/EULAR criteria for SS (grouped as non-Sjögren’s dry syndrome (NSDS)). Of these 192 patients, 60 had another possible cause of sicca syndrome and 132 patients were diagnosed with SAPS (figure 2).

The kappa concordance coefficient between the two sonographers was 78% for the parotid glands and 81% for the submandibular glands. Among 1079 analysed images, there were 152 (14%) discrepancies between the 2 readers on normal (SGUS score <2) versus abnormal (SGUS score ≥2) SGUS status. SGUS was read again by both and a consensus was reached (normal 91%, abnormal 9%).

Demographic characteristics were comparable between patients with SS and those with NSDS (table 1). As expected, there was less frequent use of dry mouth treatment (17% vs 32, p=0.02), more previous parotid swelling episodes (34% vs 10%, p<0.0001), more frequently objective xerostomia, verified by unstimulated salivary flow rate test (52% vs 31%, p=0.002) or eye sicca syndrome (79% vs 53%, p<0.001), and immunology was more often positive (ANA 78% vs 35%, p<0.0001; SSA 65% vs 2%, p<0.0001) in patients with SS than in those with NSDS. Only few patients with SS had a systemic involvement of SS (only two patients with ESSDAI ≥5). We also compared the clinical and SGUS characteristics between the three groups SS, SAPS and other causes of DS (online supplemental table S1): the results were similar between these groups, as SS versus NSDS.

Among patients with SS, there was no difference in clinical or biological characteristics between patients with SGUS 3 and 3F, but the disease duration was much longer in patients with SGUS score 3F (12.6 years vs 3.6, p=0.002) as well as the sicca symptom duration (9.8 years vs 3.6, p=0.04) (table 2). The frequency of abnormal SGUS was significantly higher in patients with SS compared with patients with NSDS: 51% vs 8% for a ≥2 score (p<0.0001), and 43% vs 3% for a ≥3 score (p<0.0001).

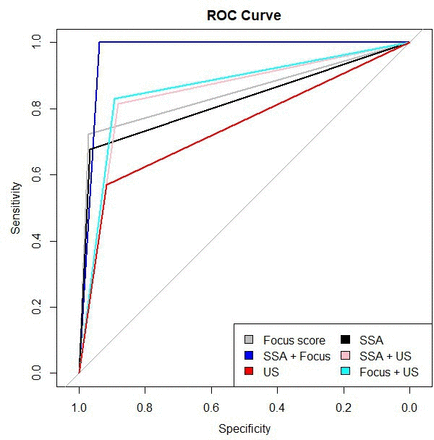

SGUS showed a high specificity (Sp) and negative predictive value (NPV) in our population (table 3). For a SGUS score ≥2, the sensitivity (Se) was 57%, Sp 92%, positive predictive value (PPV) 72% and NPV 82% (table 3). Sp was higher for a SGUS score ≥3 despite a lower sensitivity and NPV (49% and 81%). However, the ROC curves of the couple SGUS–SSA (AUC 0.85, 95% CI 0.8 to 0.9) or SGUS–focus score (AUC 0.86, 95% CI 0.81 to 0.91) were not very different than SSA alone (AUC 0.82, 95% CI 0.76 to 0.88) or focus score alone (AUC 0.85, 95% CI 0.79 to 0.9) (figure 3).

There was a good correlation between SGUS and the focus score (R=0.5, p<0.0001). Concordance between abnormal SGUS score and positive focus score was of 83%. Cohen’s kappa agreement was of 0.48. Thus, we tried to evaluate if SGUS could replace lip biopsy in a situation where LSGB is mandatory for the diagnosis in anti-SSA-negative patients. In this population of anti-SSA-negative patients, the ability of a normal SGUS (grade 0 or 1) for eliminating the diagnosis of SS was the same as in the whole population (Se 42%, Sp 91%, PPV 42%, NPV 92%) (table 3). Interestingly, the population of anti-SSA-negative patients with normal SGUS represents 186 patients in our total population attending our day care unit for suspicion of pSS (69%).

Finally, we carried out the same analyses, taking into account the two worst SGUS-scored salivary glands, as proposed by the OMERACT group. The results were very similar (online supplemental table S2): the frequency of abnormal SGUS was significantly higher in patients with SS compared with patients with NSDS (44% vs 5% for a ≥2 score (p<0.0001), 40% vs 2% for a ≥3 score (p<0.0001)). For a SGUS score ≥2, Se was 51%, Sp 96%, PPV 79% and NPV 81% (online supplemental figure 1, online supplemental table S3). In SSA-negative patients, for a SGUS score ≥2, Sp and NPV were similar as in the whole population, even better (95% and 91%, respectively).

Discussion

This study showed that SGUS could have a place in SS algorithm diagnosis. In our cohort, a SGUS score ≥2 had a sensitivity of 57% with specificity and NPV of 91% and 82%, respectively, for the diagnosis of SS in our large population of patients with dry syndrome. The most important finding of our study is that SGUS had the same high specificity and even better NPV values in anti-SSA-negative patients (91% and 92%, respectively). This strategy would avoid two-thirds of LSGB in our population. However, it is important to underline that NPVs and PPVs depend on the prevalence of the disease in the investigated population. Moreover, LSGB is important for the diagnosis of SS but also as a predictive factor of evolution. For example, high focus score or presence of ectopic germinal centres are predictive of lymphoma occurrence. Our results do not support not doing LSGB in patients with SS. They just suggest avoiding biopsy in patients with sicca symptoms and with a negative anti-SSA test, in whom the probability that the biopsy could lead to a diagnosis of SS is very low.

We proposed a fifth stage in the OMERACT scoring (score 3F). This stage was already part of the stage 3 OMERACT classification (eg, heterogeneous gland with complete destruction of the parenchyma either with hypo/anechoic areas and with or without fibrous deposits). Nevertheless, it could be useful to differentiate between the two stages since fibrosis might be important (eg, as a predictive factor of efficacy of treatment). Interestingly, patients with score 3F had a longer disease duration compared with patients with a SGUS score at 3. This new 3F grade needs to be validated by further independent studies.

Other studies have analysed the place of SGUS in the SS diagnosis criteria: in 1992, De Vita et al13 comparatively investigated SGUS abnormalities in patients with SS and controls. Scores of 0±3 were assigned to each pair of glands according to inhomogeneity, hypoechogenicity, size, and posterior borders of the parotid and submandibular glands, and this scoring system showed a sensitivity of 88.8% and a specificity of 84.6% for SS. Zhou et al realised a meta-analysis to evaluate the diagnostic accuracy of SGUS and observed a sensitivity of 75% and specificity of 93% for the diagnosis of SS.14 Nevertheless, they pulled studies with different scoring systems. Recently, Mossel et al have shown that a combination of parotid and submandibular gland US grading and a serological test for anti-SS antibodies can effectively predict the AECG, ACR or ACR/EULAR classification results of patients.15 The authors reported that the absolute agreement of US results was at most moderate compared with an AECG (82%), ACR (86%) or ACR/EULAR (80%) based classification, as well as with LSGB (79%) results. In the study of Lee et al,16 using a SGUS 0–48 scoring system, a SGUS cut-off of ≥14 had a sensitivity of 80.9% and a specificity of 95.5% for the diagnosis of SS (for AECG criteria). Lastly, in 2020, Jousse-Joulin et al12 showed that SGUS had similar weight compared with minor items and its addition improves the performance of the 2016 ACR/EULAR classification criteria.

Our main analysis was based on the worst salivary gland for the SGUS scoring. According to the OMERACT, the ultrasound scoring should be done on the two worst glands. The analysis on two glands yielded very similar results as on one gland. Thus, our results may suggest that the OMERACT recommendations could be simplified in the future. Of course, analysis of only one gland could be advised only in case of involvement of the four glands in a context of sicca syndrome and this will need further independent validation.

This study has some limitations. Our SS population was comparablewith other studies.10 17–19 However, few patients had a systemic involvement of SS (2% with ESSDAI ≥5). This retrospective study was conducted in a single tertiary care centre and it will be important to confirm that it is generalisable. We realised a unique SGUS and we did have a longitudinal follow-up.

It also has some important strengths. We systematically collected parameters for the diagnosis and for evaluating the disease activity and patient-related outcomes in all patients. In addition, all ultrasound examinations were performed by the same operator in a standardised manner. Unlike Jousse-Joulin et al11 who made video clips in order to analyse the ultrasound anomalies, we had numerous sections of the salivary glands for a pertinent analysis. Moreover, two sonographers were trained to read ultrasound images of the SGs according to the OMERACT classification and the ultrasound images were read blindly by each sonographer. The kappa concordance coefficient was slightly higher in our study than in the literature. Indeed, in another study, Jousse-Joulin et al reported that interobserver agreements were fair to substantial (κ-values=0.32 to 0.74).20

In conclusion, our study suggests that SGUS is a useful tool for SS diagnosis and may be performed before a LSGB. If anti-SSA antibodies are negative and SGUS score is inferior at 2 (which represents two-thirds of our population), the diagnosis of SS is very improbable and LSGB could be avoided. However, in case of negativity of anti-SSA and abnormal SGUS, LSGB must be carried out. In this regard, further studies to evaluate the place of SGUS in the diagnostic algorithm of SS are necessary.
