Inflammation in the posterior elements, in particular the facet joint and facet joint ankylosis over 2-year follow-up in radiographic axial spondyloarthritis

Introduction

Axial spondyloarthritis (axSpA) is an inflammatory rheumatic and musculoskeletal disease characterised by inflammation and subsequent structural damage in the sacroiliac joints and the spine.1 2 In radiographic axSpA (r-axSpA), bone formation in the form of syndesmophytes is the most distinct form of spinal structural damage. Radiography and CT are considered the best imaging techniques to assess spinal cortical bone lesions such as syndesmophytes as well as typical lesions such as vertebral endplate sclerosis (shiny corners) and erosions. However, a drawback of these imaging techniques, especially in research setting, is the patient’s exposure to radiation. Unlike radiography and CT, MRI is radiation free and it captures both inflammatory and structural lesions. However, the assessment of lesions such as syndesmophytes or erosions on MRI has been proven challenging.3

Not only lesions in the vertebra but also erosions and ankylosis of the facet joints (FJs), which are part of the posterior elements (PEs) of the spine, are common findings in r-axSpA.4 5 Inflammatory and structural lesions in these joints are associated with decreased functional status and restricted spinal mobility, affecting patient’s daily activities.6 Nevertheless, FJ damage in axSpA is often neglected.

In the Sensitive Imaging in Ankylosing Spondylitis (SIAS) cohort, a study population also used in the current study, inflammation in the vertebral body has been shown to progress into syndesmophyte formation over time.2 Therefore, it is possible, but not yet tested, that inflammation in FJ also leads to new bone formation (ankylosis). Our hypothesis is that FJ ankylosis (FJA) follows the same progressive disease pattern as syndesmophytes in the vertebral units (VUs). Hence, the objective of this study to assess whether inflammation of the PE, in particular in the FJ, is associated with subsequent new FJA on MRI in patients with r-axSpA.

Methods

Adult patients with a diagnosis of r-axSpA recruited from the Netherlands (Leiden) and Germany (Herne) were included in the SIAS prospective cohort.7 Additionally to radiographic sacroiliitis, all patients had ≥1 inflammatory lesion on MRI of the spine and 1–18 syndesmophytes evaluated on cervical and lumbar conventional radiographs. There was a 2-year follow-up period during which patients attended three visits (baseline, 1 year and 2 years) and were treated at the discretion of their rheumatologist. Patients were excluded when pregnant or if there were contraindications for performing MRI. Patients were only included in the current study if MRI scores of ≥2 readers in ≥2 time points were available.

Results

In total, 58 patients were included with available follow-up data; 6 patients had 2 time points and 52 had 3 time points; 1 patient had 2 readers’ scores instead of 3, The mean age was 49 (SD 10) years, 84% men, 84% Human Leukocyte Antigen-B (HLA-B27) positive (online supplemental table 1). Reliability data showed a moderate agreement between readers for inflammation (intraclass correlation coefficient (ICC)=0.69) and ankylosis (ICC=0.68).

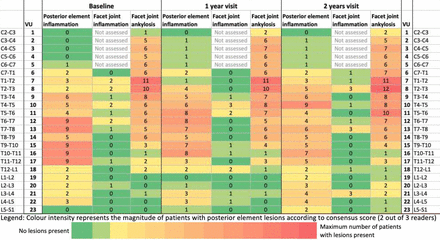

Figure 1 shows the number of patients with PE abnormalities per VU based on consensus reader scores. Baseline inflammation in any part of the PE, in at least one VU, was seen in 34 (59%) patients and in 14 (24%) patients FJ inflammation was reported. PE inflammation was distributed throughout the whole spine, but most prevalent in the lower part of the thoracic spine (9%–16% of patients, depending on the time point). FJ inflammation was infrequently present and was more often reported in the upper thoracic spine (2%–5% of patients) (figure 1). FJA was reported in 15 (26%) patients at baseline and 17 (29%) patients at follow-up. FJA was mainly reported in the upper half of the spine (figure 1).

In 19 patients (33%), the development of new FJA over 1 or 2 years was seen by at least 1 reader, in at least 1 VU. Patients who developed FJA showed similar baseline characteristics compared with those without new FJA, with a slightly higher frequency of extra-musculoskeletal and peripheral manifestations as well as conventional synthetic disease-modifying antirheumatic drugs/tumor necrosis factor inhibitors use in those with FJA (online supplemental table 1).

At the VU level, there were 7751 VU in which the development of FJA was possible given the absence of prior FJA. The vast majority (7706/7751) showed no facet ankylosis development over 1 year according to at least 1 reader, regardless of the presence of previous inflammation. Of the 513 VU levels with PE inflammation, only 2 VU levels showed new FJA after 1 year. There are 6066 VU in which FJ inflammation could be assessed, of which only 39 demonstrated new FJA. Among these, 38 FJ displayed no inflammation 1 year prior to ankylosis, while inflammation preceded ankylosis in only one FJ. FJ inflammation was observed in 94 VU levels, of which 93 did not develop FJA over time. Nevertheless, the probability of developing FJA was almost two times as high if preceded by FJ inflammation 1 year before (1.1% vs 0.6%). This trend was not seen with inflammation in any part of the PE (table 1). These findings are confirmed by the multilevel analyses, as there was no association between PE inflammation and the development of FJA at the same level after 1 year (OR=1.15, 95% CI: 0.55 to 2.42). However, FJ inflammation was associated with new FJA 1 year later (OR=3.79, 95% CI: 1.47 to 9.75). Figure 2 shows an example of the development from FJ inflammation to FJA 1 year later.

Discussion

The findings of this study underline the relationship between inflammation and ankylosis in axSpA, demonstrating that the presence of FJ inflammation is associated with higher odds for the development of subsequent FJA at the same spinal location. This association persists despite the low frequency of lesions in the FJ.

To the best of our knowledge, this is the first study to focus on the concept of inflammation in PE progressing to FJA in MRI. Generally, the literature on FJ damage among patients with axSpA is limited. Studies on established axSpA report FJA in 25% and 18% of patients with r-axSpA having average disease durations of 16 and 7 years, respectively, both relying on radiography and concentrating on cervical FJ.4 11 Conversely, low dose CT data show that >50% of patients with axSpA (symptom duration>10 years) have ≥1 ankylosed FJ.12 13 In our study, the prevalence of FJA was 26% at baseline and 29% at follow-up, aligning with average ranges reported in studies using radiography.

Concerning inflammation in the PE, our study’s 59% prevalence aligns with the existing literature, although reported lesions vary substantially across studies, ranging from 8% (nr-axSpA) to 26% (r-axSpA) to outlying studies reporting 76% and 88% in patients with r-axSpA.14–16 This diversity likely stems from the varied study populations and imaging methods. In contrast, Lee et al found <5% FJ inflammation in patients with axSpA with recent back pain, while our study identified a 24% prevalence in severe patients with r-axSpA with longer disease duration, suggesting FJ inflammation may be more common in severe cases.17

This study reports a moderate number of patients with inflammatory lesions of the PE and FJA. However, the vast majority of VU exhibit no PE abnormalities. To address the objective of this study, we assessed the development of newly ankylosed FJ, which was also low. Of the VU levels with PE or FJ inflammation, only very few showed new FJA after 1 year: two and one VU levels, respectively. Nevertheless, the probability of developing FJA was almost two times as high if preceded by FJ inflammation 1 year before (1.1% vs 0.6%). It is important to emphasise that these proportions are descriptive and do not account for various dependencies between factors, such as readers or the interdependence of VU levels within each subject. To address this, we used multilevel longitudinal models considering interdependence when assessing the relationship using all cases and considering all within-patient and within-reader correlations. Hence, the models also account for the most frequent situations of absence of FJA following the absence of FJ inflammation. In line with what the descriptive data showed, no association was observed between inflammation anywhere in the PE and the development of FJA. It suggests that considering inflammation in any part of the PE is overly broad and lacks the specificity needed to be linked to new FJA. Inflammation in different parts of the PE may have diverse underlying pathological mechanisms, making it challenging to establish a direct link to new FJA. Also, PE encompass various anatomical regions, each potentially responding differently to inflammation.

Among the various PE, FJ plays a crucial role. They govern and guide vertebral motion, facilitate load transmission onto the spine and contribute to spinal stability.18 FJ damage is frequently observed in ageing individuals. Given that our cohort consists of older individuals, degeneration may be a contributing factor to the reported damage. Nevertheless, degenerative changes in the FJ are commonly prevalent in the lumbosacral area, as opposed to the FJ damage mostly at the thoracic level reported in this study, suggesting a higher likelihood of being secondary to axSpA. Given the specific role of FJ, it is logical to assume that explicitly FJ inflammation may play a role in the bone proliferation within these joints. Indeed, our observations support this assumption; the likelihood of new FJA 1 year later is over three times higher (OR=3.79) when FJ inflammation at the same level is seen. Furthermore, these results carry conceptual significance, as they underline the pathophysiological link between bone inflammation and bone damage. While previous studies have indicated this in vertebral bodies, our study provides evidence of this phenomenon in the FJ.1 2 19

A limitation to this study is the lack of a radiologist in the reading evaluation. One could argue that identifying structural lesions on MRI in general is a challenging task, even for an experience radiologist, especially when assessing spinal lesions, because of complex differential diagnoses. This should be taken into account when evaluating results on structural MRI lesions in general. Nevertheless, the reader team had >7 years experience in MRI structural lesion assessment in axSpA. The current study cohort was previously used to investigate whether the presence of bridging syndesmophytes increased the risk of FJA and vice versa using CT. Though not the primary objective of the study, the disease course phenomenon in FJ was reported, showing a twofold increase in likelihood of new FJA on CT when inflammation in the PE was present 2 years prior.8 CT imaging offers superior detail regarding bone structure and is highly sensitive to ligamentous calcifications.20 MRI excels in evaluating inflammation but may be less sensitive in assessing structural lesions. Syndesmophytes are more reliably assessed on CT compared with MRI. However, the present study examined both inflammatory and structural lesions using MRI due to the advantages it offers. While low-dose CT exists, it still involves radiation, unlike MRI, which is radiation free. Additionally, obtaining an MRI of the spine in clinical practice is more feasible compared with obtaining both a CT (for structural lesion assessment) and an MRI (for inflammatory lesion assessment).

It is important to exercise caution when extrapolating the findings of this study to other (radiographic) axSpA populations as the generalisability of these findings is limited due to the specific study population of patients with longstanding r-axSpA in whom active and structural spinal damage was present at baseline.

In summary, this study reports a moderate number of patients with r-axSpA with inflammatory or structural lesions in the FJ mainly at the thoracic level, consistent with the literature. However, on VU level, lesions are infrequently observed. Nevertheless, in patients with r-axSpA with FJ inflammation, there is a threefold increased risk of developing FJA at the same site 1 year later. This finding contributes to our understanding of the pathophysiological relationship between inflammation and ankylosis at the same anatomical location of the axial skeleton in patients with axSpA.
